Imperial Thickness Set for Festool Domino XL DF700

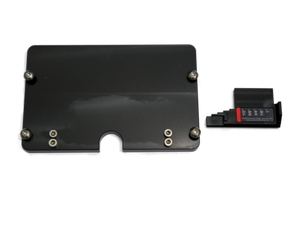

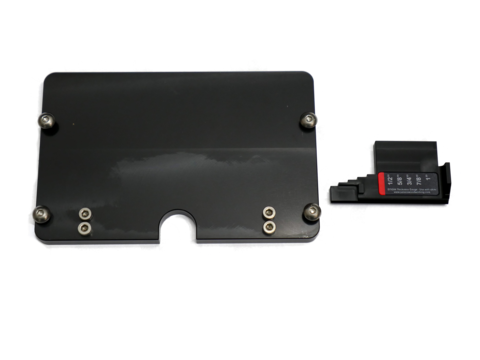

effortlessly adjust the Domino fence offset to center your mortise on a range of imperial material thicknesses from 1/2" to 1". The set consists of two components: an Imperial Thickness Gauge and a "Domi-Shim™." The Imperial Thickness Gauge installs in less than a minute using a Torx T10 bit (not included), and is a direct replacement for the metric thickness gauge included with your Domino DF700. The Domi-Shim™ attaches to the DF700 Fence to enable centering on narrower material than was previously possible without a shim or spacer.

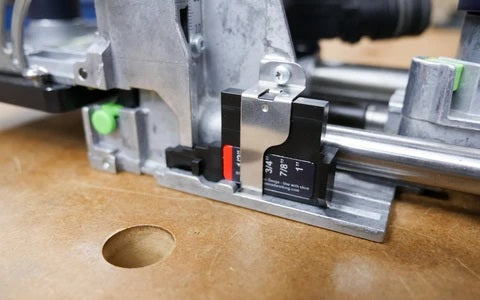

The Imperial Thickness Gauge is CNC machined from Delrin material and designed to center on 1/2", 5/8", 3/4", 7/8", and 1" nominal ply thicknesses.

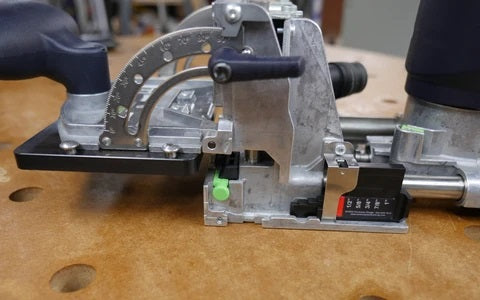

The Domino DF700 fence has a lower travel limit that would normally prevent it from centering on 3/4" or smaller ply so a shim is required to enable centering on these thicknesses. This set includes the Seneca Woodworking Domi-Shim™ required to work properly. This Domi-Shim™ can be installed by itself (without the Imperial Thickness Gauge) and used to center on 1/2" nominal ply. This Domi-Shim™ is the same 1/2" shim we originally sold as part of our Domi-Shim™ set. If you already own the set of two Domi-Shims, and want to upgrade to the faster adjustment that this set provides, you can purchase the Imperial Thickness Gauge separately HERE
